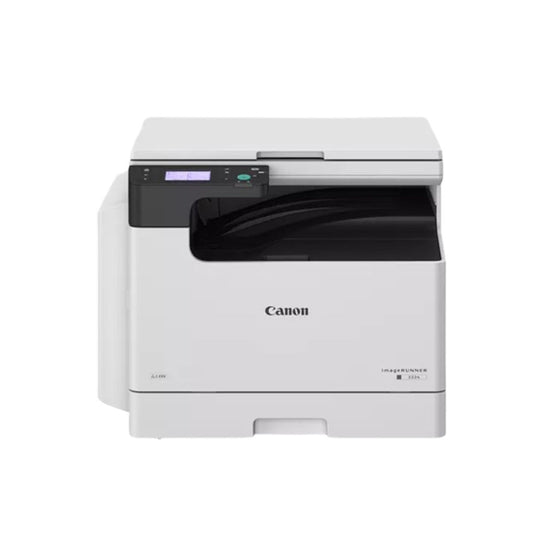

PICTURE IS FOR REFERENCE ONLY, ACTUAL PRODUCT MAY VARY ADF NOT INCLUDED Machine Type A3 Monochrome Laser Multifunctional Core Functions iR2224: Print, Copy, and Scan Control Panel 3.5 inch monochrome touch panel Memory 1.0 GB RAM Storage eMMC: 2 GB Interface Connection NETWORK 1 Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Device) x1 Paper Supply Capacity (A4, 80 gsm) Standard: 350 sheets (Paper Drawer: 250 sheets, MPT Tray: 100 sheets) Maximum: 600 sheets (with Cassette Feeding Module-AK1) Paper Output Capacity (A4, 80 gsm) Standard: 250 sheets Maximum: 250 sheets Supported Media Types Multi-purpose Tray: Thin, Plain, Recycled, Thick, Colour, Bond, Label, Pre-punched, Envelope Paper Cassette: Plain, Recycled, Colour, Pre-punched Supported Media Sizes Multi-purpose tray: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelope (COM10, Monarch, DL, ISO-C5), Custom size min. 95.0 x 148.0 mm up to 297.0 x 431.0 mm Paper Cassette: Standard size: A3, A4, A4R, A5R, B4, B5, B5R Supported Media Weights Multi-purpose tray: 60 to 157 gsm Paper cassettes: 64 to 90 gsm Duplex: 60 to 90 gsm Warm-up Time From Power On: 13 seconds or less 2 3 From Sleep Mode: 4.3 seconds or less Dimensions (W x D x H) iR2224/2224N (with Platen cover): 627 x 589 x 502 mm Installation Space (W x D) 1065 x1285 mm Weight iR2224: Approx. 31.6 kg without toner and including Platen cover Print Print Speed (BW) 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) 2-sided: Up to 16.7 ppm (A4), Up to 7.5 ppm (A3), Up to 7.8ppm (A4R) Print Resolution (dpi) 600 × 600 Page Description Languages Standard: UFRII Optional (iR2224N only): PCL6/PCL5 Printing From Mobile and Cloud Application Apple AirPrint, Canon PRINT Business, Mopria, Canon Print Service Fonts PCL fonts: 45 Roman, 10 Bitmap fonts Operating System UFRII: Windows® 8.1 / Windows® 10 / Windows® 11 / Windows® Server 2012 / Windows® Server 2012 R2 / Windows® Server 2016 / Windows® Server 2019 / Windows® Server 2022/ macOS (10.12 or later) PCL: Windows® 8.1 / Windows® 10 / Windows® 11 / Windows® Server 2012 / Windows® Server 2012 R2 / Windows® Server 2016 / Windows® Server 2019 / Windows® Server 2022 Copy Copy Speed 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) 2-sided: Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R) First-Copy-Out Time (BW) Platen: Approx. 7.4 seconds or less (A4) Copy Resolution (dpi) 600 x 600 Multiple Copies Up to 999 copies Copy Density Automatic or Manual (9 Levels) Magnification 25% - 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400% Scan Document Feeder Paper Capacity (OPTIONAL) 50 Sheets (80 gsm) Acceptable Originals and Weights Platen: Sheet, Book Document Feeder sheet media weight: 1-sided/2-sided continuous scanning: 52 to 105 gsm (BW/CL) Only 1-sheet feeding is supported in 37-52 and 105-128 gsm Supported Media Sizes Platen: Max. scanning size: 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm Scan Speed (ipm: BW/CL, A4) DADF: 1-sided Scanning: 35/25 (300 dpi, send), 25 (600 dpi, copy) 2-sided Scanning: 12/8 (300 dpi, send), 8 (600 dpi, copy) Scan Resolution (dpi) Scan for Copy: up to 600 x 600 Scan for Send: (Push) up to 300 x 600, (Pull) up to 600 x 600 Pull Scan Specifications ScanGear MF For both TWAIN and WIA Windows® 8.1/ Windows® 10/ Windows® 11 macOS (10.12 or later) Security Authentication and Access Control Department ID Authentication (Department ID and PIN Login, Function Level Login） Document Security Print Security (SecurePrint, Encrypted SecurePrint), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History) Network Security TLS 1.3 5 , IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP Address Filtering), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN Device Security Standard HDD/SSD Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193) Device Management and Auditing Administrator Password, Digital Certificate and Key Management 6 , Security Policy Setting 6 Environmental Operating Environment Temperature: 10 to 30 ºC Humidity: 20 to 80% RH (Relative Humidity) Power Source Asia: 220-240V 50/60Hz 10A Power Consumption Maximum: Approx. 1,500 W Standby: Approx. 15.5 W Sleep mode: Approx. 0.9 W Consumables Toner Yield (Estimated Yield @ 6% Coverage) NPG-59 TONER BK OTH: 10,200 impressions (A4) Paper Supply Options Feeder Options Cassette Feeding Module-AK1 Paper Capacity: 250 sheets x 1 (80 gsm) Paper Type: Plain, Recycled, Colour, Pre-punched Paper Size: A3, A4, A4R, A5, B4, B5, B5R Paper Weight: 64 to 90 gsm Power Source: Main Unit Dimensions (W x D x H): 581 x 575 x 92 mm Weight: Approx. 5.8 kg
