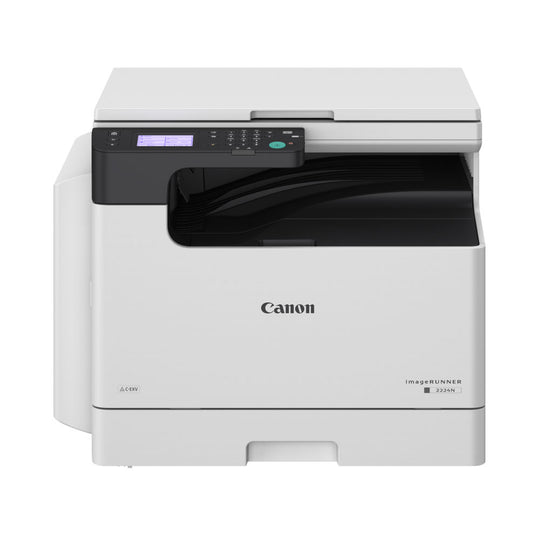

PICTURE IS FOR REFERENCE ONLY, ACTUAL PRODUCT MAY VARY Machine Type A3 Monochrome Laser Multifunctional Core Functions iR2224N: Print, Copy, Scan, and Send iR2224: Print, Copy, and Scan Control Panel 3.5 inch monochrome touch panel Memory 1.0 GB RAM Storage eMMC: 2 GB Interface Connection NETWORK 1 Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Device) x1 Paper Supply Capacity (A4, 80 gsm) Standard: 350 sheets (Paper Drawer: 250 sheets, MPT Tray: 100 sheets) Maximum: 600 sheets (with Cassette Feeding Module-AK1) Paper Output Capacity (A4, 80 gsm) Standard: 250 sheets Maximum: 250 sheets Supported Media Types Multi-purpose Tray: Thin, Plain, Recycled, Thick, Colour, Bond, Label, Pre-punched, Envelope Paper Cassette: Plain, Recycled, Colour, Pre-punched Supported Media Sizes Multi-purpose tray: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelope (COM10, Monarch, DL, ISO-C5), Custom size min. 95.0 x 148.0 mm up to 297.0 x 431.0 mm Paper Cassette: Standard size: A3, A4, A4R, A5R, B4, B5, B5R Supported Media Weights Multi-purpose tray: 60 to 157 gsm Paper cassettes: 64 to 90 gsm Duplex: 60 to 90 gsm Warm-up Time From Power On: 13 seconds or less 2 3 From Sleep Mode: 4.3 seconds or less Dimensions (W x D x H) iR2224N (with DADF): 627 x 607 x 606 mm iR2224/2224N (with Platen cover): 627 x 589 x 502 mm iR2224N (with DADF and cassette): 627 x 607 x 698 mm iR2224N (with Platen cover and cassette): 627 x 589 x 594 mm Installation Space (W x D) 1065 x1285 mm Weight iR2224N: Approx. 30.3 kg without toner and Platen cover iR2224: Approx. 31.6 kg without toner and including Platen cover Print Print Speed (BW) 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) 2-sided: Up to 16.7 ppm (A4), Up to 7.5 ppm (A3), Up to 7.8ppm (A4R) Print Resolution (dpi) 600 × 600 Page Description Languages Standard: UFRII Optional (iR2224N only): PCL6/PCL5 Printing From Mobile and Cloud Application Apple AirPrint, Canon PRINT Business, Mopria, Canon Print Service Fonts PCL fonts: 45 Roman, 10 Bitmap fonts Operating System UFRII: Windows® 8.1 / Windows® 10 / Windows® 11 / Windows® Server 2012 / Windows® Server 2012 R2 / Windows® Server 2016 / Windows® Server 2019 / Windows® Server 2022/ macOS (10.12 or later) PCL: Windows® 8.1 / Windows® 10 / Windows® 11 / Windows® Server 2012 / Windows® Server 2012 R2 / Windows® Server 2016 / Windows® Server 2019 / Windows® Server 2022 Copy Copy Speed 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R) 2-sided: Up to 16.7 ppm (A4), Up to 7.5ppm (A3), Up to 7.8ppm (A4R) First-Copy-Out Time (BW) Platen: Approx. 7.4 seconds or less (A4) Copy Resolution (dpi) 600 x 600 Multiple Copies Up to 999 copies Copy Density Automatic or Manual (9 Levels) Magnification 25% - 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 70%, 100%, 141%, 200%, 400% Scan Document Feeder Paper Capacity 50 Sheets (80 gsm) Acceptable Originals and Weights Platen: Sheet, Book Document Feeder sheet media weight: 1-sided/2-sided continuous scanning: 52 to 105 gsm (BW/CL) Only 1-sheet feeding is supported in 37-52 and 105-128 gsm Supported Media Sizes Platen: Max. scanning size: 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm Scan Speed (ipm: BW/CL, A4) DADF: 1-sided Scanning: 35/25 (300 dpi, send), 25 (600 dpi, copy) 2-sided Scanning: 12/8 (300 dpi, send), 8 (600 dpi, copy) Scan Resolution (dpi) Scan for Copy: up to 600 x 600 Scan for Send: (Push) up to 300 x 600, (Pull) up to 600 x 600 Pull Scan Specifications ScanGear MF For both TWAIN and WIA Windows® 8.1/ Windows® 10/ Windows® 11 macOS (10.12 or later) Send Destination iR2224N: Email (SMTP), SMB3.0 Address Book / Speed Dials iR2224N: LDAP (50) / Local (300) / One-Touch (296) Send Resolution (dpi) Push (iR2224N): 300 x 600 (SMB/FTP/Email) Pull: 50 x 50, 75 x 75, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400, 600 x 600 Communication Protocol File 1 : SMB3.0 (TCP/IP) Email 1 : SMTP (Send) File Format Standard: TIFF, JPEG 4 , PDF (Compact) Security Authentication and Access Control Department ID Authentication (Department ID and PIN Login, Function Level Login） Document Security Print Security (SecurePrint, Encrypted SecurePrint), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History) Network Security TLS 1.3 5 , IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP Address Filtering), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN Device Security Standard HDD/SSD Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193) Device Management and Auditing Administrator Password, Digital Certificate and Key Management 6 , Security Policy Setting *6 Environmental Operating Environment Temperature: 10 to 30 ºC Humidity: 20 to 80% RH (Relative Humidity) Power Source Asia: 220-240V 50/60Hz 10A Power Consumption Maximum: Approx. 1,500 W Standby: Approx. 15.5 W Sleep mode: Approx. 0.9 W Consumables Toner Yield (Estimated Yield @ 6% Coverage) NPG-59 TONER BK OTH: 10,200 impressions (A4) Paper Supply Options Feeder Options Cassette Feeding Module-AK1 Paper Capacity: 250 sheets x 1 (80 gsm) Paper Type: Plain, Recycled, Colour, Pre-punched Paper Size: A3, A4, A4R, A5, B4, B5, B5R Paper Weight: 64 to 90 gsm Power Source: Main Unit Dimensions (W x D x H): 581 x 575 x 92 mm Weight: Approx. 5.8 kg
