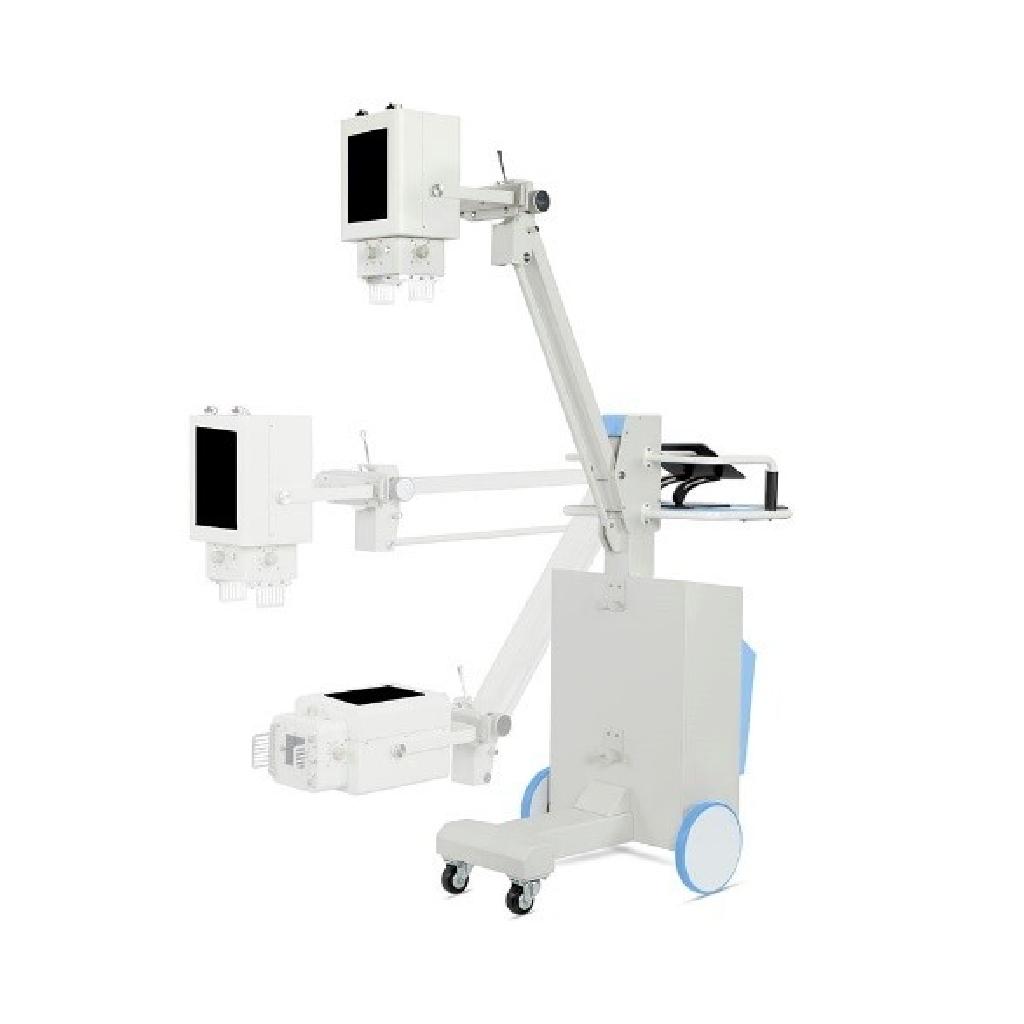

AG-MPD50B is a high-performance, portable digital X-ray imaging system engineered for flexibility and clarity in mobile diagnostic settings. With a maximum output power of 5 kW, the AG-MPD50B supports a wide kV range of 40–125 kV and mA range of 0.1–100 mA, making it suitable for a range of clinical imaging needs from chest to extremities. The system is equipped with an advanced amorphous silicon flat panel detector featuring a 139-micron pixel size and a large effective imaging area of 427 mm × 427 mm. The detector delivers high-resolution imaging with a spatial resolution of 3.4 L/mm, ensuring sharp and detailed diagnostic results. The unit integrates a DICOM 3.0-compliant workstation with a powerful Intel i5 laptop, 8GB RAM, and 512GB SSD for fast processing and image management. The image processing software supports window width/level adjustments, brightness/contrast control, image equalization, enhancement, sharpening, and secure data transmission and printing. Designed for usability, the portable rack offers a vertical adjustment range from 500 mm to 1750 mm and 360° rotation, enabling flexible positioning in constrained environments. The system also features RS232 connectivity and a user-friendly interface.
