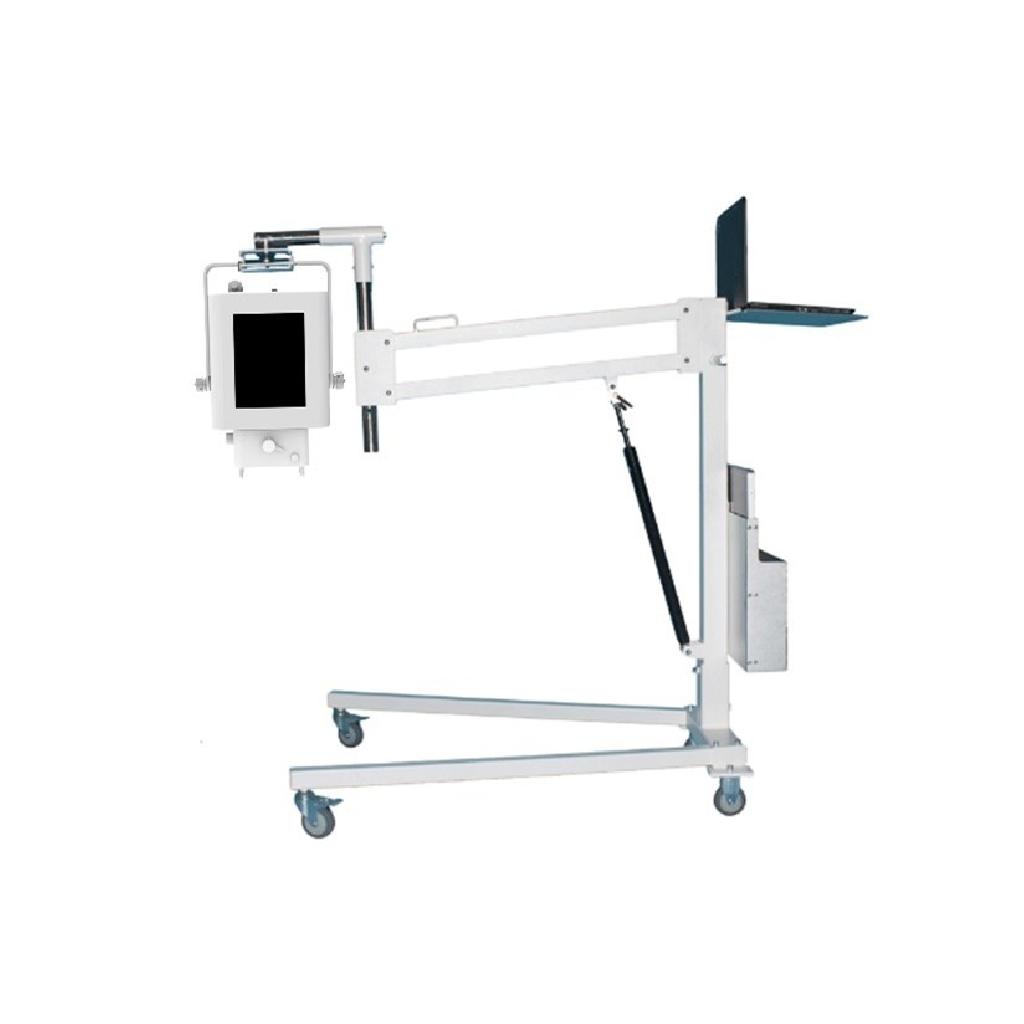

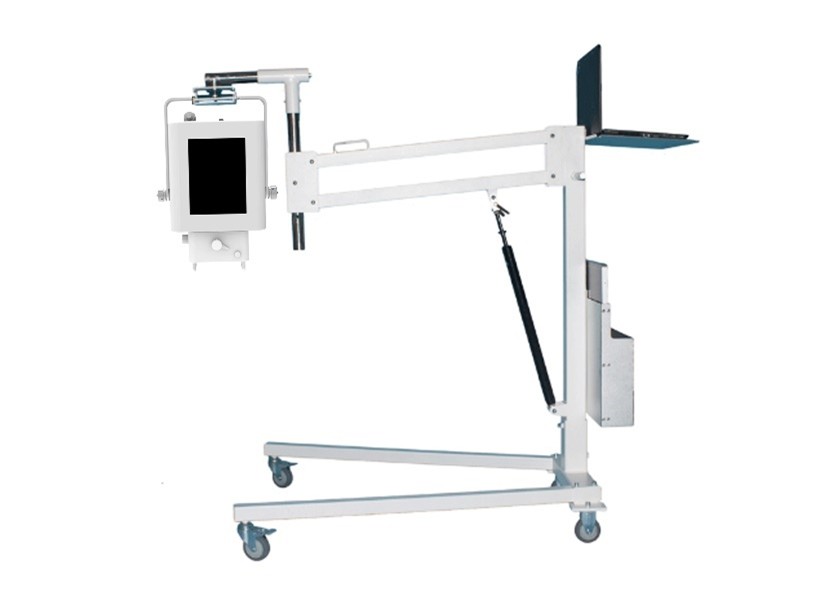

The AG-MPD50B-1 is a compact and efficient portable digital X-ray system designed for high-quality imaging in diverse clinical environments. It features a maximum output power of 5 kW, with a kV range of 40–125 kV and an mA range of 10–100 mA, ensuring versatility for various diagnostic needs. The system utilizes an amorphous silicon flat panel detector with a 139 µm pixel size and a 3072 × 3072 pixel matrix, providing high-resolution images with a spatial resolution of 3.4 lp/mm. Data is transmitted via Gigabit Ethernet, and the system is powered by a 24V DC supply. The included laptop workstation is equipped with an Intel i5 processor, 8GB RAM, and a 512GB SSD, running on a Windows operating system, and supports DICOM 3.0 for seamless image management. The portable rack offers adjustable height from 670 mm to 1690 mm and 360° rotation, facilitating flexible positioning for imaging. The system is housed in a sturdy steel frame and comes packaged in a wooden crate for secure transport.
