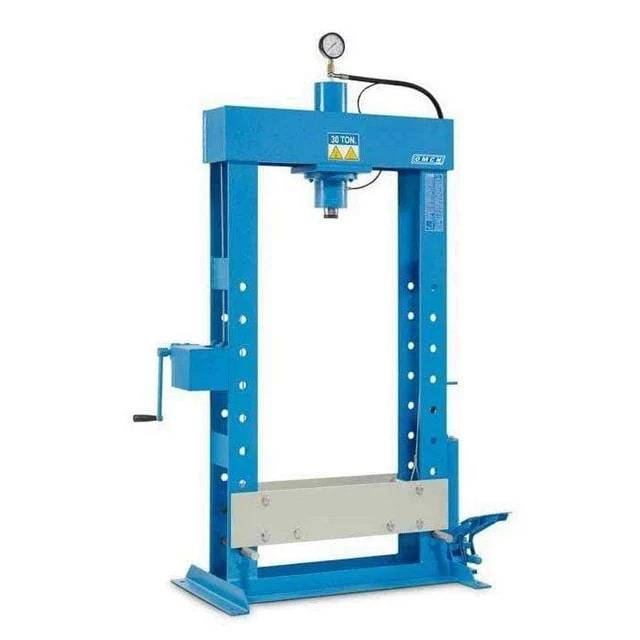

The OMCN Hydraulic Press is engineered for demanding workshop applications, offering heavy-duty performance with compact, welded steel construction. Available in 30-ton, 50-ton, and 100-ton models, each press is equipped with a manual two-speed pump, built-in winch, and precision hydraulic system. Ideal for professional mechanics, metalworkers, and industrial workshops, this press delivers reliable strength and efficient control.

---

Key Features of the OMCN Hydraulic Press (30T / 50T / 100T)

✅ High Load Capacity – Choose between 30T (30,000kg), 50T (50,000kg), or 100T (100,000kg)
✅ Heavy-Duty Welded Steel Frame – Compact and extremely robust
✅ Chrome-Plated Shaft – Corrosion-resistant and durable under pressure
✅ Built-in Return Spring – Ensures rapid shaft return
✅ Two-Speed Manual Pump – Fast approach and precise pressing modes

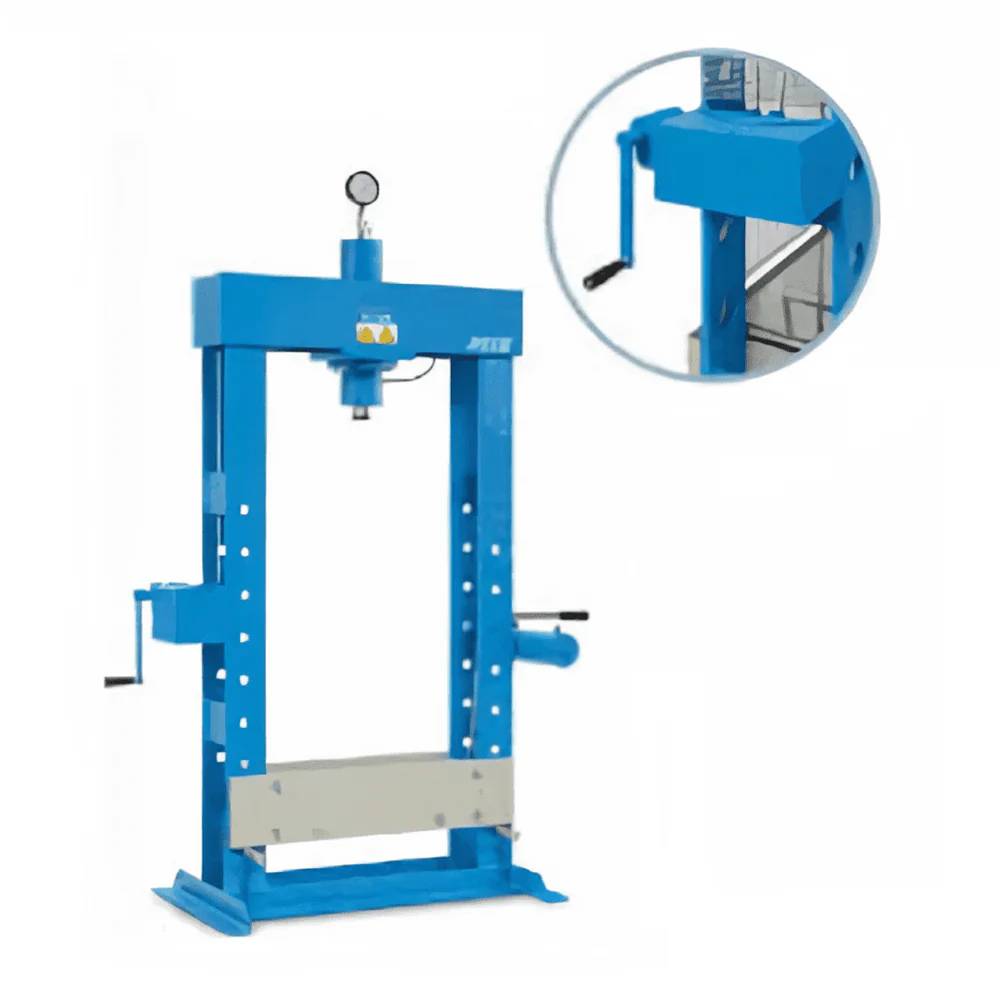

✅ Winch-Operated Workbench – Allows effortless adjustment of working height
✅ Pressure Gauge (Manometer) – Large, easy-to-read dial
✅ Hand-Controlled Speed Knob – Seamless control over pressure application
✅ Three Size Options – Dimensions optimized for various use cases (see specs below)

---

Why Choose the OMCN Workshop Press?

• Industrial-grade press built for high-pressure, high-frequency use
• Dual-speed system improves speed and control during operations
• Reliable European craftsmanship for serious professionals
• Smooth operation and long-term durability
• Convenient bench-height adjustment with built-in winch system

---

Technical Specifications

30 Ton – Model P30/SA

Metric	Value
Load Capacity	30,000 Kg
Height (A)	2180 mm
Width (B)	600 mm
Base Length (C)	1300 mm
Between Plates (D)	695 mm
Max Table Height (E)	1000 mm
Stroke (F)	170 mm
Shaft Dia. (G)	190 mm
Plate Height (H)	60 mm

50 Ton – Model 158

Metric	Value
Load Capacity	50,000 Kg
Height (A)	2260 mm
Width (B)	850 mm
Base Length (C)	1420 mm
Between Plates (D)	770 mm
Max Table Height (E)	1135 mm
Stroke (F)	210 mm
Shaft Dia. (G)	190 mm
Plate Height (H)	60 mm

100 Ton – Model 160

Metric	Value
Load Capacity	100,000 Kg
Height (A)	2440 mm
Width (B)	900 mm
Base Length (C)	1740 mm
Between Plates (D)	1010 mm
Max Table Height (E)	1055 mm
Stroke (F)	285 mm
Shaft Dia. (G)	215 mm
Plate Height (H)	110 mm

---

What’s in the Box

• OMCN Hydraulic Press (30T, 50T, or 100T)
• Two-speed manual pump
• Shaft with return spring
• Pressure gauge (manometer)
• Bench winch system
• User and installation manual

---
