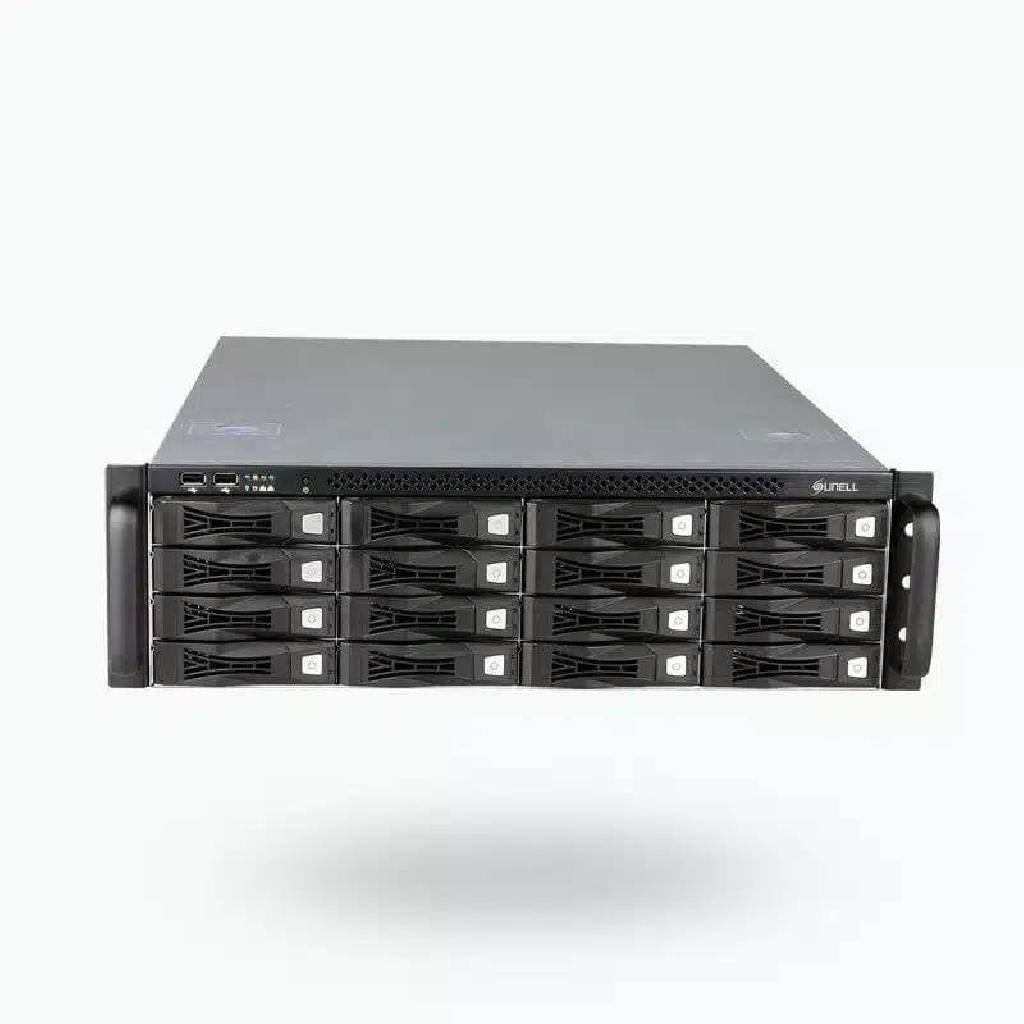

Built for large-scale security infrastructure, the Sunell 64CH 16HDD 4K Network Video Recorder offers industrial-grade reliability, ultra-high-definition recording, and intelligent features that scale effortlessly with your security demands. Whether you're managing a commercial complex, campus, or critical infrastructure, this NVR handles up to 64 IP cameras, delivers 12MP recording, and supports 16 HDD bays—making it your all-in-one surveillance powerhouse.

---

Key Features at a Glance

• 64-channel IP camera input with 512Mbps throughput
• Supports ultra-HD recording up to 12MP resolution
• 16 SATA HDD bays – up to 192TB storage capacity
• RAID 5/6/10 support for data redundancy and fault tolerance
• Dual HDMI & VGA outputs with up to 4K (3840×2160) video output
• Smart playback with event/time search and multi-channel review
• Cloud firmware upgrade support and remote mobile access

---

Smart Features & Benefits

• Massive Camera Support – Connect and record from up to 64 IP cameras simultaneously
• Ultra-HD 12MP Video – Get cinematic-level clarity for forensic detail and evidence
• Enterprise-Level Storage – Store months of footage with up to 16 × 12TB HDDs
• RAID Backup Options – Protect against disk failures with RAID 5/6/10
• Smart Detection & Playback – Quickly find and review motion events, alarms, and video loss
• Multi-Screen Display – Output up to 4K video across multiple screens (1/4/8/16/32/64 layouts)
• Flexible Backup Options – Save video via USB, eSATA, or network
• Remote Monitoring – Watch live or playback footage from your phone, tablet, or web browser

---

Technical Specifications

Feature	Specification
Model	NVR3664E16
Camera Input	64 IP Channels
Max Input/Output Bandwidth	512 Mbps
Max Recording Resolution	Up to 12MP
Storage Capacity	16 × SATA (up to 12TB each) = 192TB Max
RAID Support	RAID 0/1/5/6/10
Video Output	2 × HDMI, 1 × VGA (Max 4K)
Display Options	1/4/8/9/16/32/36/64 views
Interfaces	2 × RJ-45, 4 × USB (2.0/3.0), 1 × eSATA
Network Protocols	HTTP, HTTPS, IPv4, UPnP, TCP/IP, SMTP, etc.
Power Supply	AC 100–240V
Operating Temp	-10°C to 50°C (14°F to 122°F)
Dimensions	440 × 433.5 × 93 mm
Weight (No HDD)	7.2 kg (15.87 lbs)

---

Ideal For:

• Corporate campuses and shopping centers
• Large residential estates or gated communities
• Warehouses, factories, and logistics hubs
• Banks, schools, government buildings, and healthcare facilities

---

What’s in the Box?

• 1 × Sunell 64CH 4K NVR (NVR3664E16)
• 1 × Power Cable
• 1 × Quick Setup/User Manual
• Mounting Accessories (if included)

---

Scale Smarter with Sunell

If your surveillance requirements are growing, or you demand uncompromising performance and uptime, the Sunell 64CH 16HDD 4K NVR is the system to trust. With ultra-HD clarity, immense storage potential, and enterprise-level features, it empowers you to manage and protect large-scale operations with precision.
Invest in the backbone of your security network. Order the Sunell 64CH 4K NVR today—future-proof your monitoring infrastructure.
