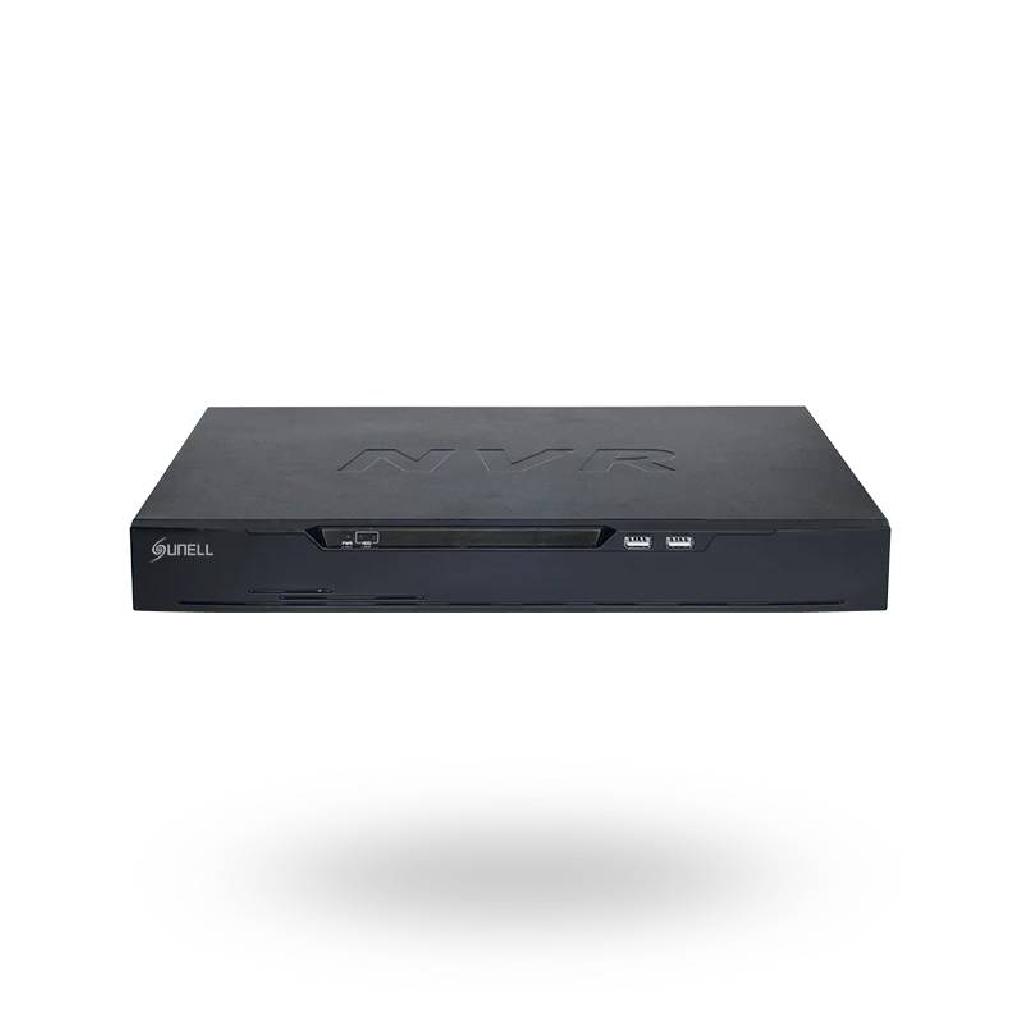

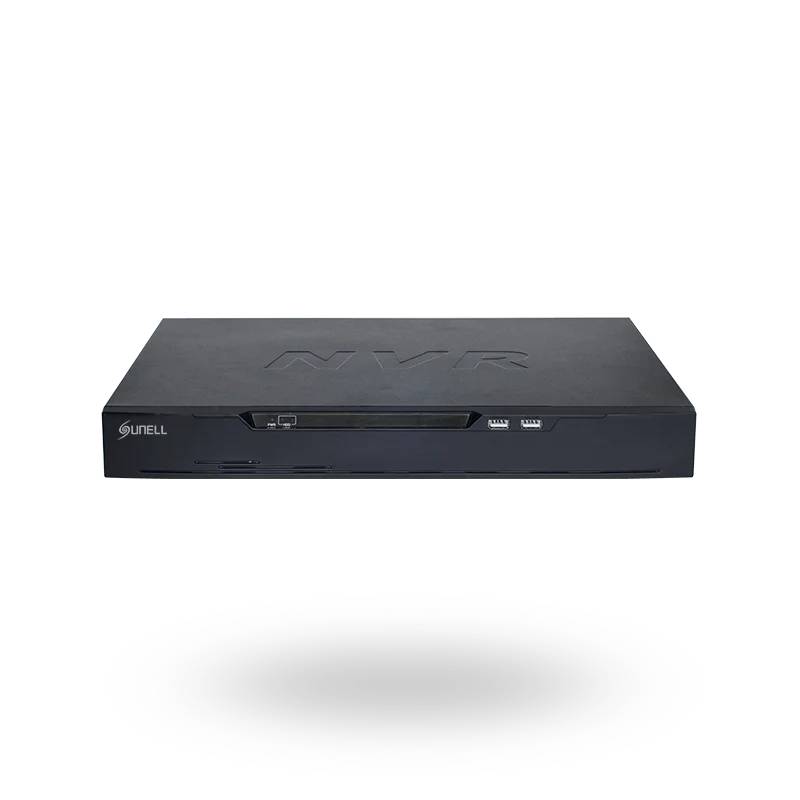

Designed for medium to large-scale surveillance systems, the Sunell 64CH 2U 8HDD 4K NVR delivers outstanding 4K performance, smart analytics, and up to 96TB of storage capacity. With support for 64 IP cameras, dual 4K HDMI outputs, and RAID redundancy, this 2U rackmount NVR offers professional-grade reliability and efficiency for commercial, industrial, or institutional use.

---

Key Features at a Glance

• 64-channel IP camera input with 384Mbps bandwidth
• Record in ultra-HD up to 12MP resolution
• 8 × SATA bays supporting up to 96TB total (12TB per drive)
• Dual HDMI outputs with support for 4K video display
• Supports RAID 5, 6, 10 for data protection and redundancy
• Smart search and playback by time, alarm, or event
• Cloud upgrade and remote access support
• Compatible with ONVIF, SDK, CGI for third-party integration

---

Smart Features & Benefits

• 12MP Recording & Playback – Future-proof resolution for crisp forensic evidence
• RAID Storage Protection – Avoid downtime and data loss with hardware RAID support
• 8 HDD Bays – Store more video for longer periods with up to 96TB capacity
• Smart Video Management – Efficient playback tools and intelligent search filters
• Multi-Display Output – Dual HDMI and VGA outputs let you customize your monitoring layout
• Remote Monitoring – Access cameras anytime via iOS, Android, or browser
• Event-Based Recording – Trigger recordings from motion, intrusion, or video loss

---

Technical Specifications

Feature	Specification
Model	NVR3664E8
Channels	64 IP Cameras
Recording Resolution	Up to 12MP
Max Throughput	384Mbps (Input + Output)
Storage	8 × SATA (12TB each) = 96TB Max
RAID Support	RAID 5, 6, 10
Video Outputs	2 × HDMI (4K), 1 × VGA
Decoding	1 × 12MP / 4 × 8MP / 16 × 1080P
Network Protocols	HTTP, HTTPS, TCP/IP, IPv4/6, UPnP, NTP
Remote Access	Mobile App (iOS/Android), Web Client
Interface Ports	2 × RJ-45, 4 × USB (2.0/3.0), 1 × eSATA
Certifications	CE, FCC
Power Supply	AC 100–240V
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Dimensions	440 × 433.5 × 93 mm
Weight (No HDD)	7.2 kg (15.87 lbs)

---

Ideal For:

• Multi-site business locations or large offices
• Industrial surveillance systems requiring long retention
• Commercial or hospitality facilities with many entry/exit points
• Educational institutions, hospitals, or logistics hubs

---

What’s in the Box?

• 1 × Sunell 64CH 2U 8HDD 4K NVR
• 1 × Power Cord
• 1 × User Manual / Quick Installation Guide
• Mounting Accessories (if included)

---

Efficient, Scalable, and Secure – The Core of Your Surveillance Network

From its 12MP resolution capability to its RAID-enabled 8-HDD storage, the Sunell 64CH 2U 8HDD 4K NVR is built to scale with your growing security demands. Whether you're upgrading an old system or deploying a new one, this NVR offers a powerful foundation that supports both performance and protection.
Upgrade your security command center today with Sunell’s reliable and scalable 64-channel 4K NVR.
